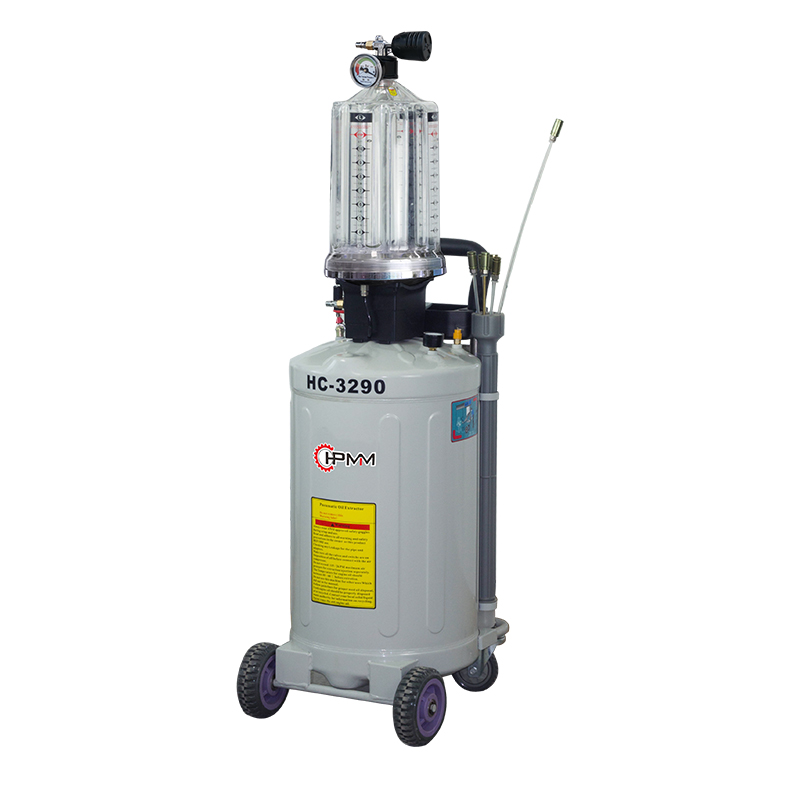

HC-3290 Pneumatic Oil Extractor,The Portable HC-3290 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.
HC-3290 Pneumatic Oil Extractor,The Portable HC-3290 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.
Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.
◆Use the explosion-proof equipment, can effectively protect the machine and operator’s security(Exclusive patent)
◆The product appearance has the exclusive patent.
| Tank capacity | 80L |
|---|---|
| Modular cylinder capacity | 11/12L |
| Air inlet pressure | 6-8Bar |
| Air inlet connection | 1/4” |
| Air pressure for oil discharge | 0.7~1Bar |
| Vacuum degree | -1~0Bar |
| Oil temperature range | 40-60℃ |
| Suction Speed(max.) | 6.5Liter/m |
| N/G weight | 22/27kgs |
| Package dimension | 555*445*1450mm |
