Description
Description:
1. The machine in the factory with valid calibration and it is not necessary to perform calibration at the customer site.
2. Roll the vehicle to complete the compensation, quickly to get the measurement data in two minutes.

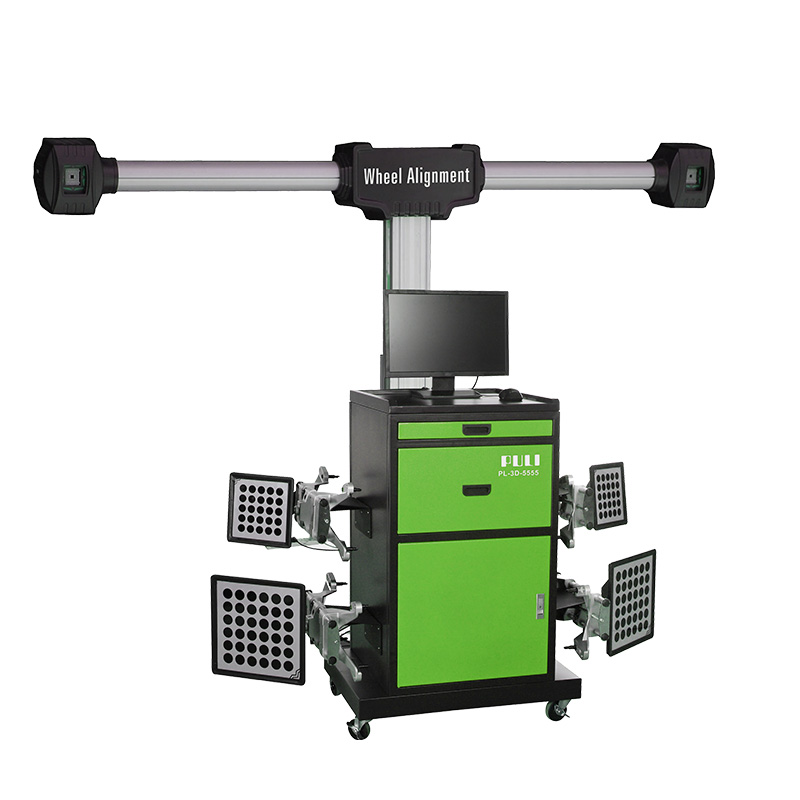

PL-3D-5555 Wheel Alignment Machine
Wheel Alignment Machine PL 3D 5555, The machine in the factory with valid calibration, and it is not necessary to perform calibration at the customer site.
Specification
|
Model No. |
Accuracy |
Range |
|
Display accuracy |
1’ / 0.01o / mm |
– |
|
Camber |
±2 ‘ |
±10o |
|
Caster |
±6 ‘ |
±20o |
|
King – Ping(SAL) |
±6 ‘ |
±20o |
|
Toe |
±2 ‘ |
±20o |
|
Set Back |
±2 ‘ |
±5o |
|
Thrust angle |
±2 ‘ |
±5o |
|
Track width |
±2mm |
1800mm |
|
wheel base |
±2mm |
3300mm |
